Ljevaonica Duga Resa d.o.o.

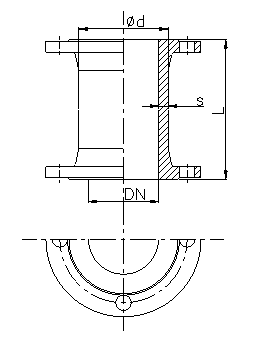

Spojni komad s prirubnicama

Double flanged collar

Flanschstueck

FF (SP) - EN 545

(DIN 28614)

Nazivni promjer

s

d₁

L _max

Masa / weight / Gewicht

Nominal size

1 m cijevi

1 prirubnica

Nennweite

1 m pipe

1 flange / Flansche

DN

1 m Rohre

PN 10

PN 16

50

7

67

1000

10.2

2.2

2.2

65

7

82

1000

13.8

2.5

2.5

80

7

98

1000

16.2

3.0

3.0

100

7.2

118

1000

20.5

3.4

3.4

125

7.5

144

1000

26.5

4.1

4.1

150

7.8

170

1000

32.5

5.0

5.0

200

8.4

222

1000

46.3

7.0

6.8

250

9

274

1000

61.5

9.8

9.4

Materijal

NL 40

Površ. zaštita

Inertol

Material

DCI 40

Coating

Inertol

Werkstoff

GGG 40

Beschichtung

Inertol
